"The back end of the Magic well not really magic but a lot of hard work."

The back end server that picked the songs for the person pressing the button controlled whether the show was open or closed, logged data from the button and its sensors and generally tide everything toughter was designed in a program called NodeRED with help from another program called Mosquitto MQTT.

The server was created over two years at first it was just a way of the button picking a song at random and the grew to include a web front end so that people could pick a song. As well as these two key functions it also processed temperature and humidity data and pushed in to a database

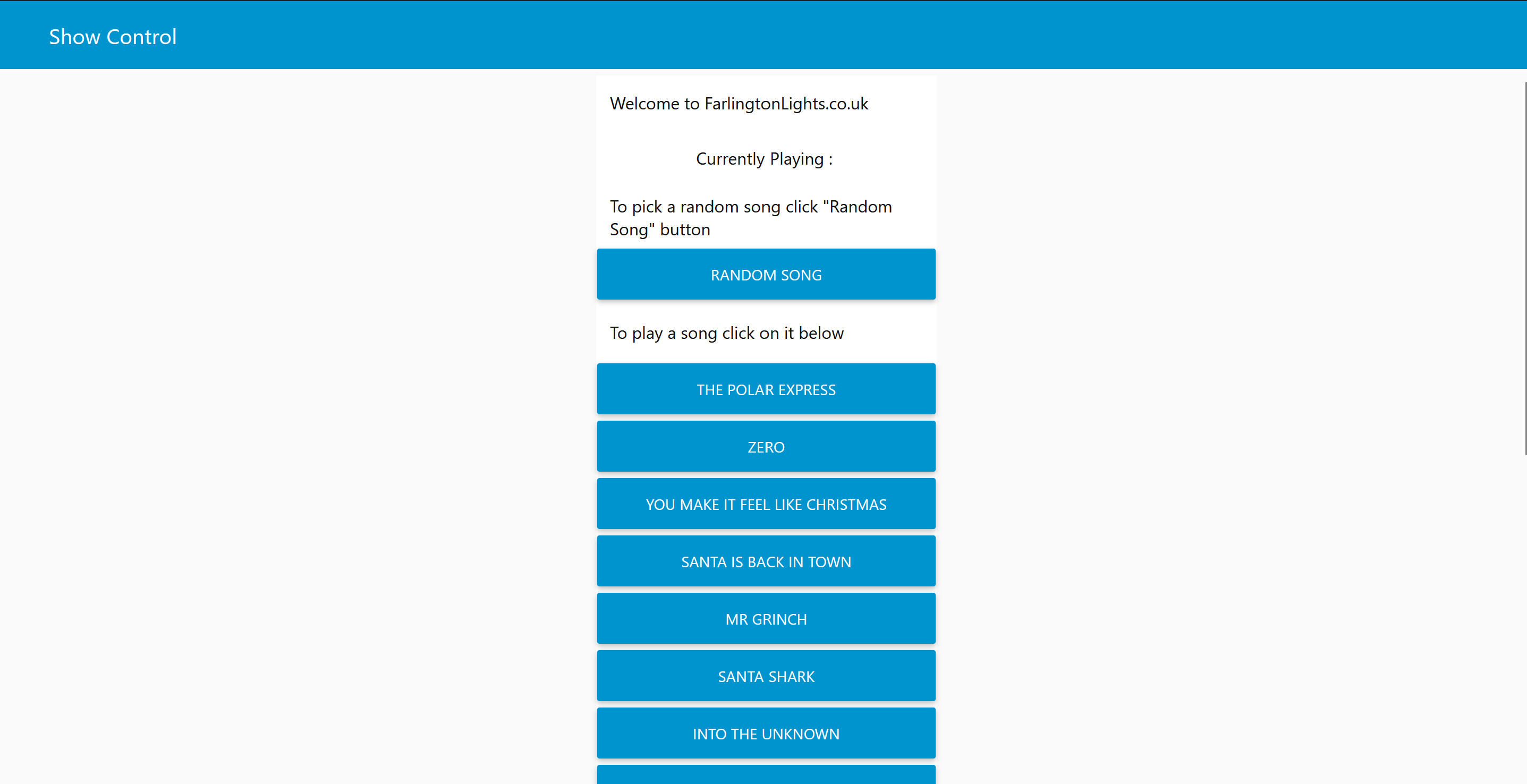

NodeRED User Interface

Image: The user interface

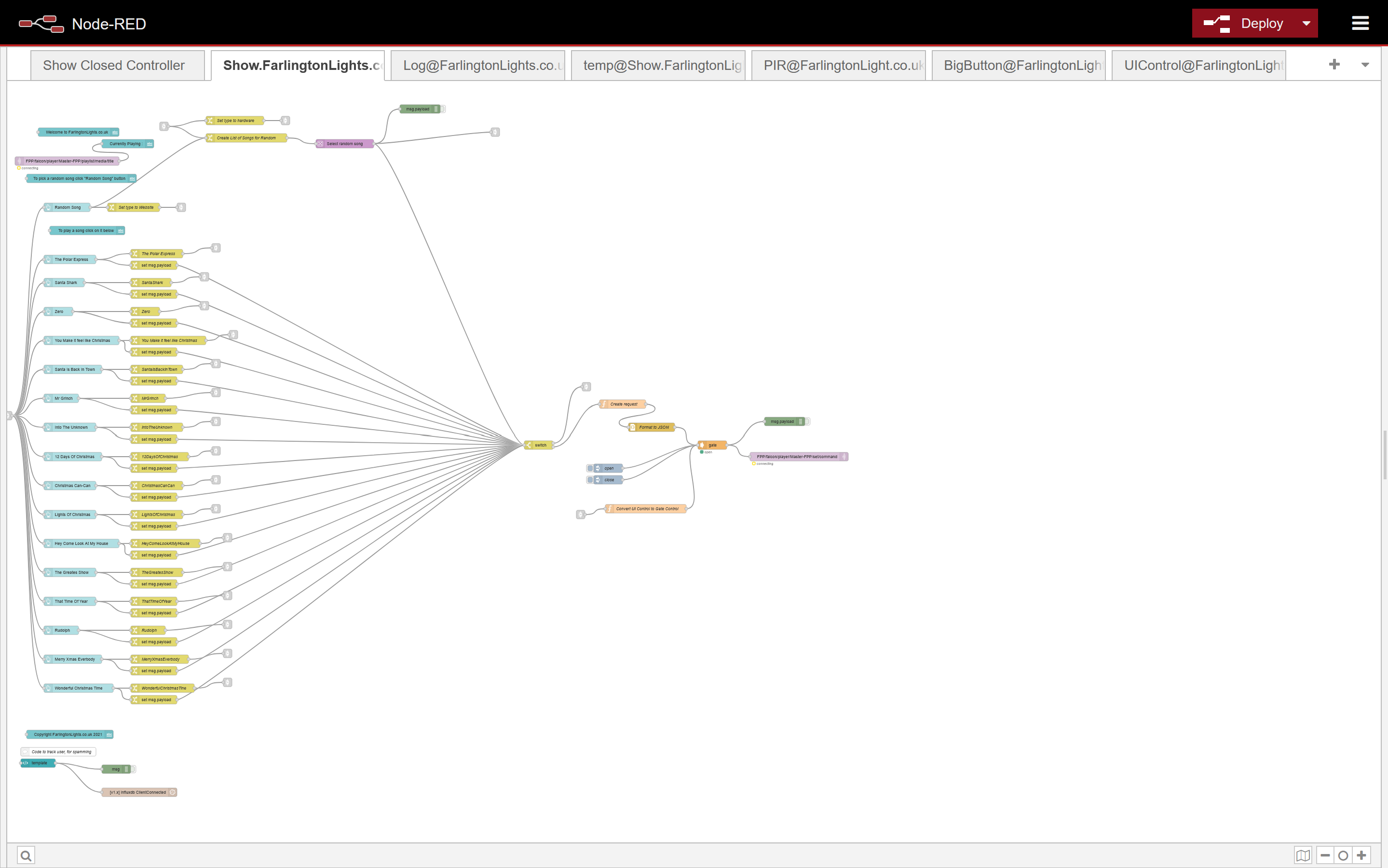

The Magic behind the song selection

Image: The user interface

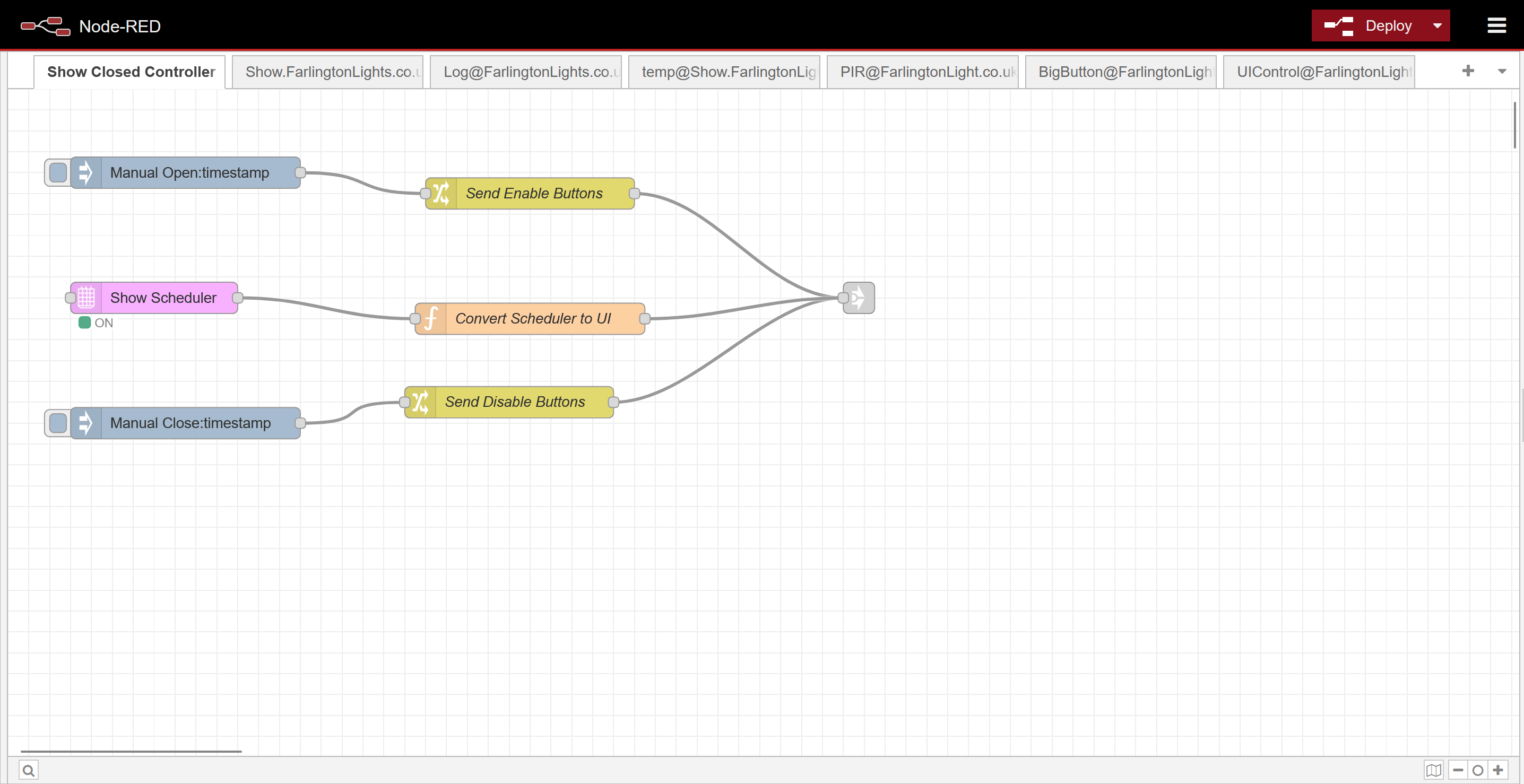

The flow that controlled if the show was open or closed

Image: The show schedular

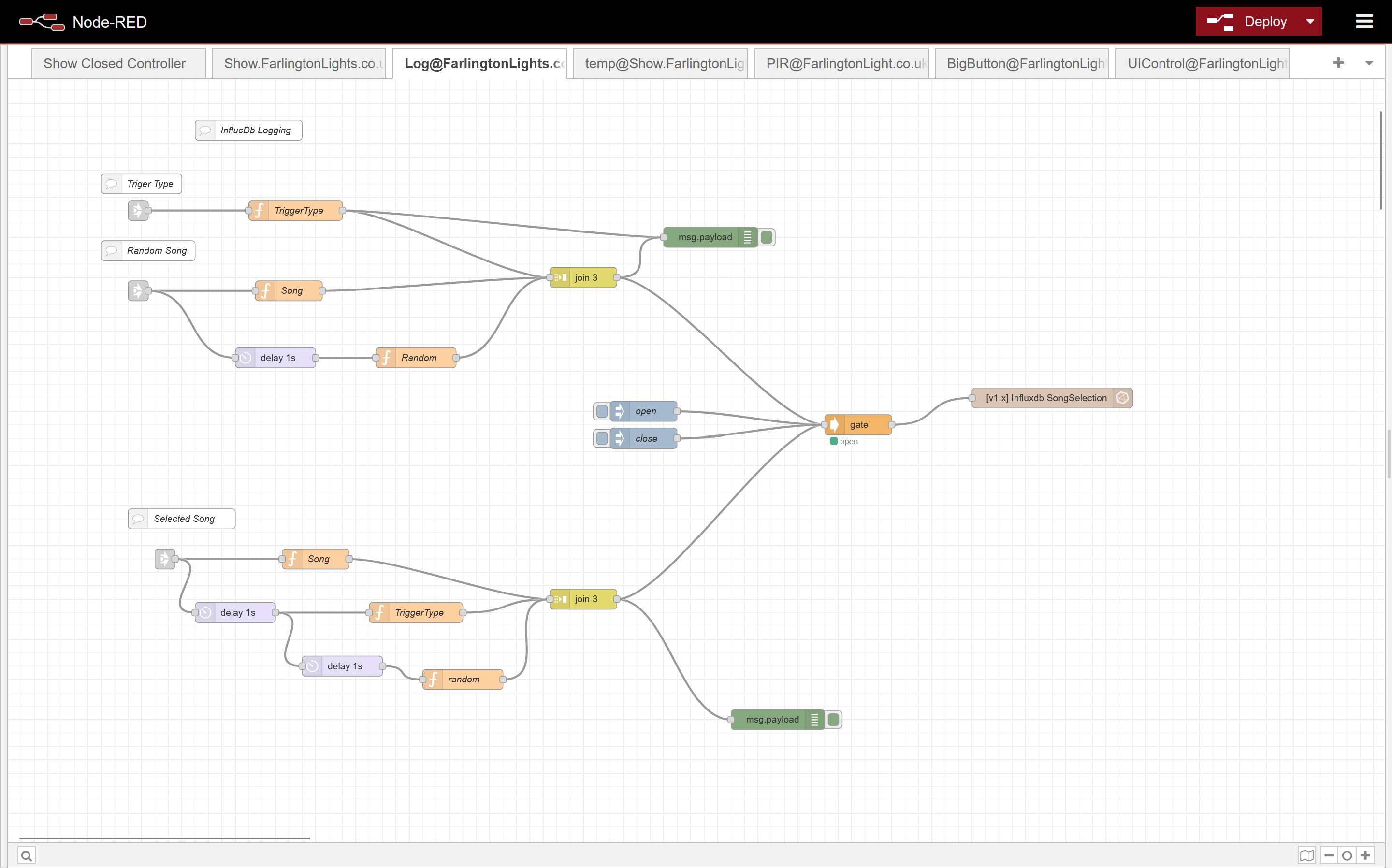

The flow that controlled data being logged to a database

Image: The Logger Flow

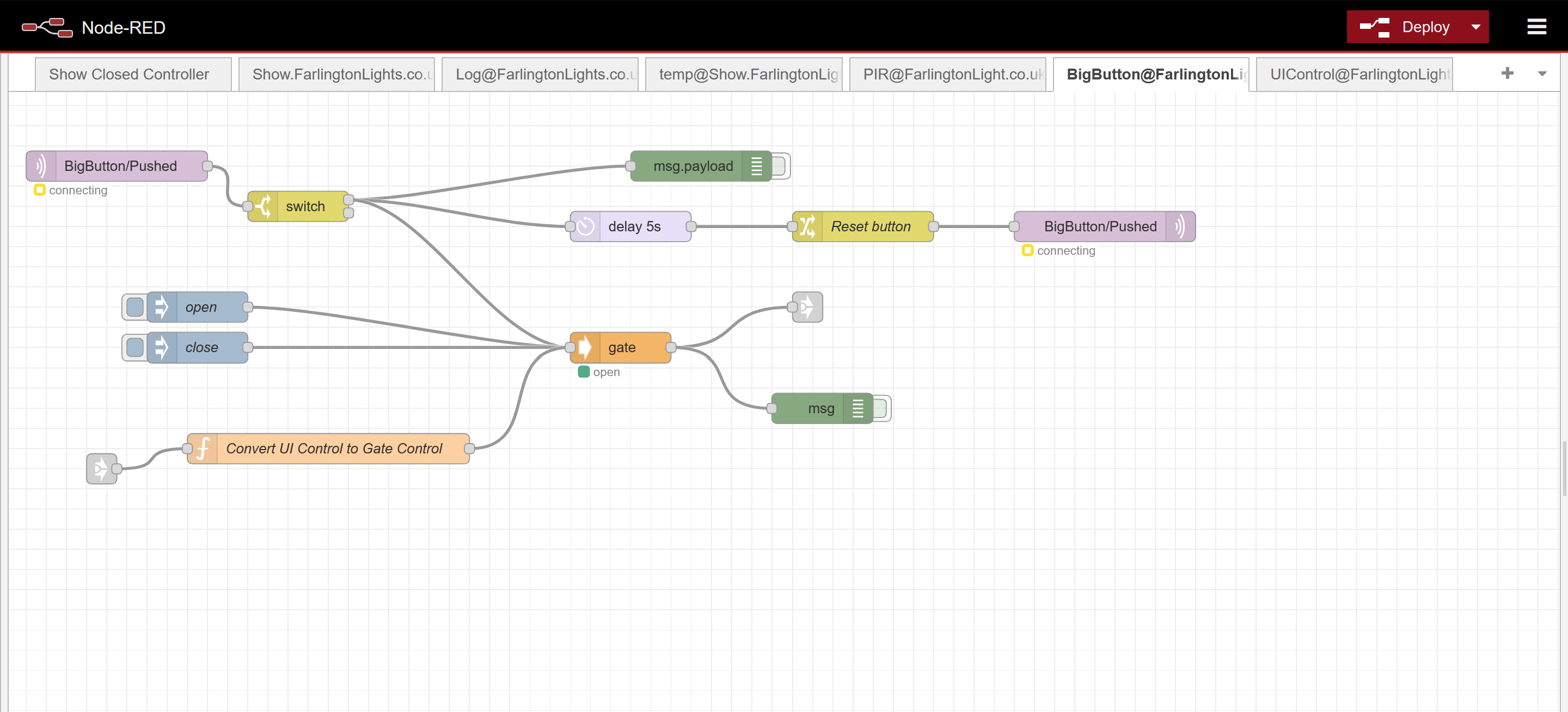

The flow that controlled the button

Image: The button control flow

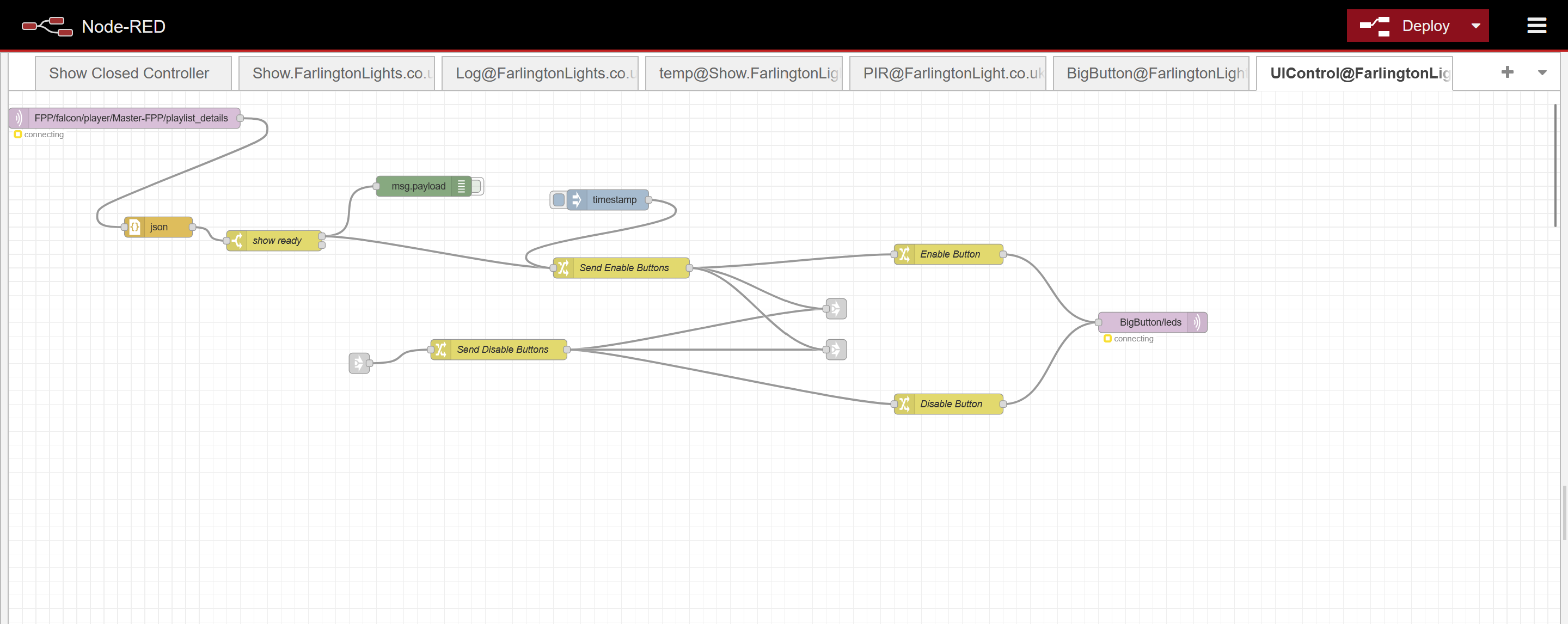

The flow that controlled the WebUI controls

Image: The WebUI control flow

And now with the button being retired and replaced with a plugin this flow will be retired and archived.
